Traversing Systems

Traversing Systems

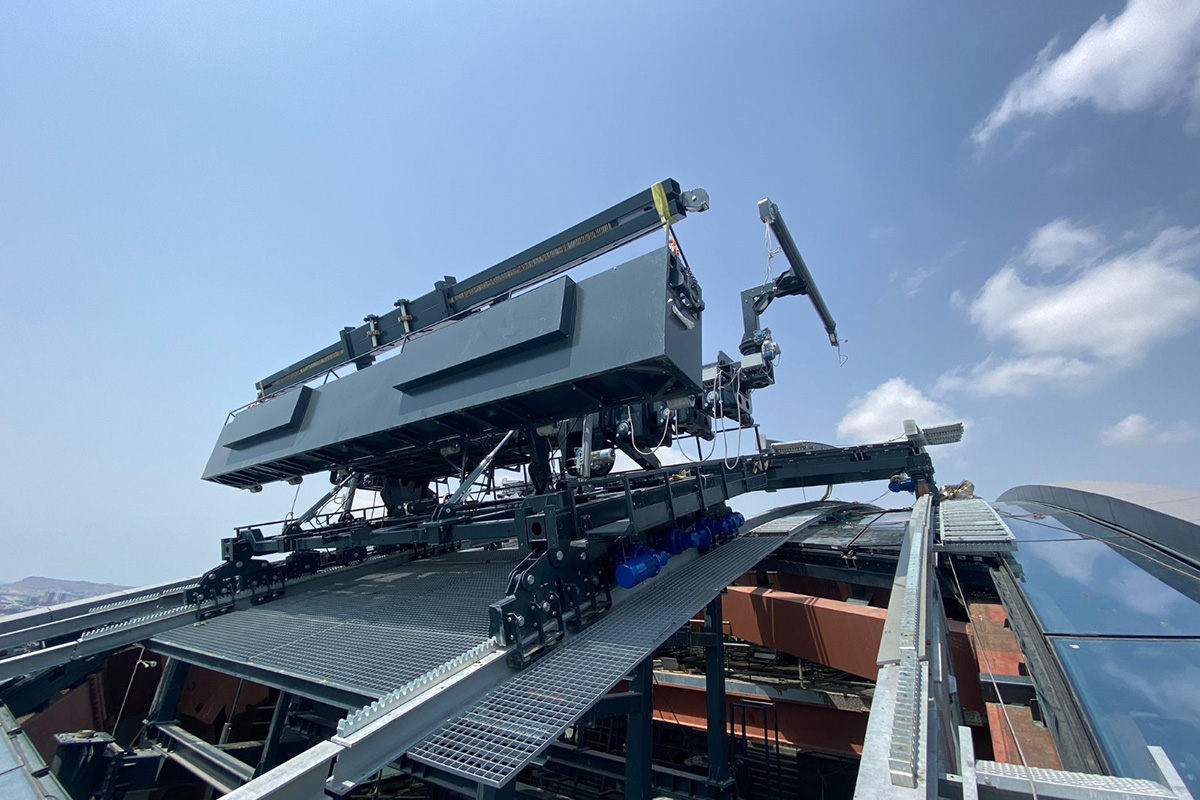

A track system equipped with a rack and pinion mechanism that allows the machine to traverse on roofs with a slope greater than 3%. This system enables the machine to move to the desired location in three dimensions

Climbing Track

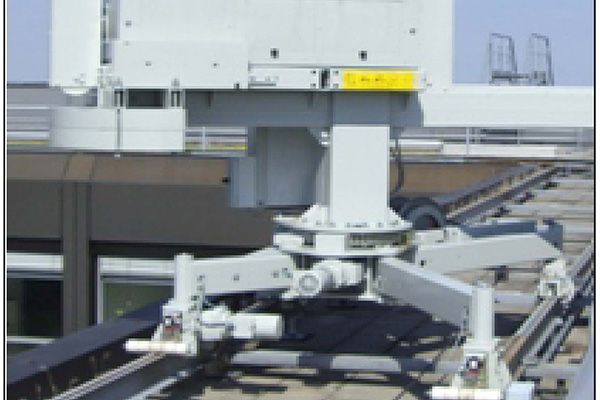

With free laid tracks, if appropriate for the project site and design of the machine, you can prevent drilling on the concrete and easier to install when compared with anchored track.

Free Laid Track

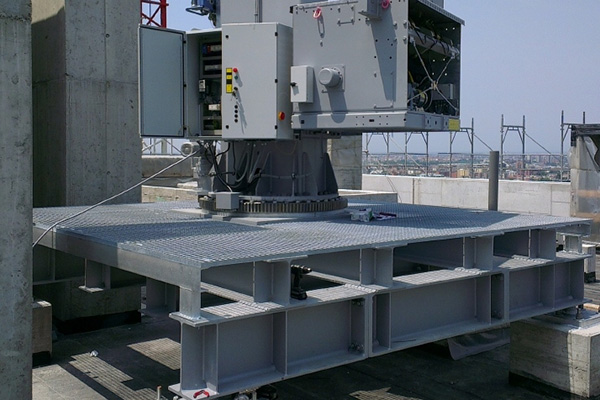

In case there is no available space behind the paraphet on the terrace for rail track options, then BMU can be installed on fixed plinths usually in the middle of the roof.

Fixed

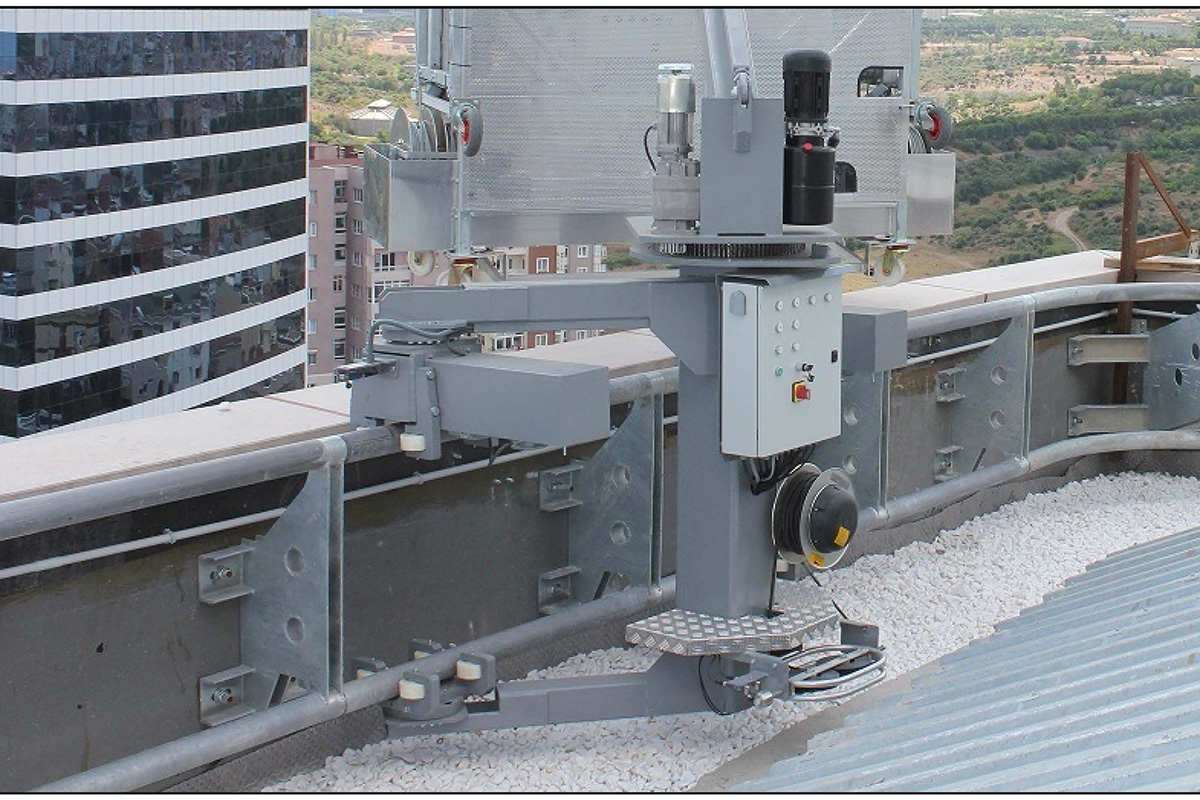

This paraphet mounted machine system can be used , where applicable,when there is not enough space to make a track rail or L-Guide on the roof of the building. in this case, the paraphet should be strong enough.

Paraphet Track

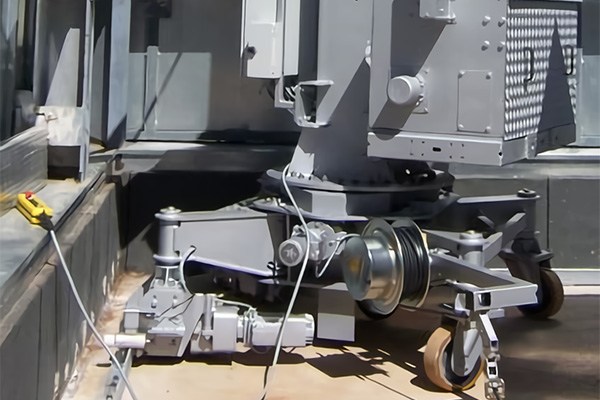

The Machine performs its movements with the help of L- guides manufactured from angles laid on the building terrace.

Guiding Track

The Machine is running on the building with HEB, HEA, IPN, iPE rails which are anchored on the roof terrace.

Anchored Track
